Foldable

Compact

ABSOLUTE STANDARD IN HIGH-QUALITY FOLDING CHAIRS

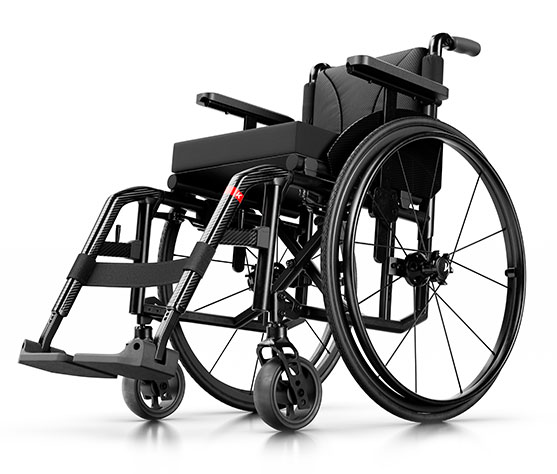

Küschall Compact has outstanding functionality for reliable everyday use and can easily be adapted to suit varying needs, to enhance overall comfort. Available in a fixed front frame with impressive rigidity for excellent driving performance or a swing-away frame, making transfers, storage and transportation even easier.

Carbon Line

Small detail. Noticeable difference. Optional carbon legrests bring a lighter, more refined finish to the Compact. A subtle upgrade that enhances both the feel and the overall aesthetic.

Available with fixed or swing away leg rests

Our engineers have wisely merged versatility and performance into one product. With the new Küschall Compact you can choose the fixed or swing-away front frame, and the result is an all-around product with the stance of a super active wheelchair.

Smaller tube frame diameter

More stiffness with smaller tubes. Hydroforming allows a significant reduction of the weight of the frame, guaranteeing less effort in propelling, easy front transfers and compact storage.

Ergonomic bended knee

Thanks to the new shapes in the knee area you will benefit from maximum grip for easy transfer, repositioning or loading in the car. Ergonomics meets today's hydroforming possibilities, giving life to a design that unites tradition and modernity.

Keep On Track

Your needs drive our innovations. The more control you have, the better your driving experience will be. Our engineers have designed this intuitive castor housing adjustment, immediate in the regulations and excellent in keeping the direction steady. Never lose sight of the goal with Keep On Track.

CARBON LINE

A lighter, more responsive option, that sharpens every movement while maintaining the premium design and precision Küschall is known for.

Customization Options

3 Simple steps and more than 100 design possibilities to make your Küschall wheelchair even more personal:

1. Frame colour

Select the frame among 12 possibilites.
*Additional lead time for specific colours.

Pure white

Azure Blue

Carmine Red

Space Black

Anthracite Grey

Black Glossy *

Dynamite Orange *

Flashy Yellow *

Forest Green *

Pearl Night Blue *

Ruby Red *

Silver Grey *

2. Decal design

Give a personal touch to your Küschall by adding a decal decoration on the frame. 2 options to choose among:

Bold

Tag

3. Decal colour

Select the decal colour among 6 different possibilites:

Red Tag

Black Tag

Red Bold

Black Bold

Dark Grey Bold

Light Grey Bold

Blue Bold

Gold Bold

*Colours may vary slightly from those displayed above and are not contractual.

3D Visualizer

Configure your new Küschall to the last detail:

Watch your new Küschall take shape, configure it to the smallest details and have fun, the power is in your hands.

Would you like to know more?

Please complete the form below and we will contact you directly to answer any questions that you may have.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.

* Required fields

Find your closest dealer

Technical data

Seat width:

280 – 500 mm in increments of 20 mm

Seat depth:

320 – 500 mm in increments of 20 mm

Knee-to-heel length:

200 - 510 mm in increments of 10 mm

Backrest height:

300 – 510 mm in increments of 15 mm

Backrest angle:

82° / 86° / 90° / 94° / 98° / 102°

Seat height:

front: 370 – 530 mm rear: 360 – 500 mm increments of 10 mm

Frame angle:

70º / 80º Straight or tapered

Total width:

Seat width + 160 mm

Total width folded:

approx. 290 mm

Total length:

70°: approx. 870 – 1220 mm 80°: approx. 850 – 1200 mm

Camber:

0º / 3º

Total weight unloaded:

approx. 10.3 kg (swing away) approx. 9.6 kg (fixed frame)

Transport weight:

approx. 7.8 kg (swing away) approx. 6.7 kg (fixed frame)

Max. user weight:

130 kg

*All measurements and weights indicated are based on seat width 400 mm and seat depth 400 mm in the lightest and most compact configuration. Weight and measurements can change with the different configurations.
