3D Visualizer

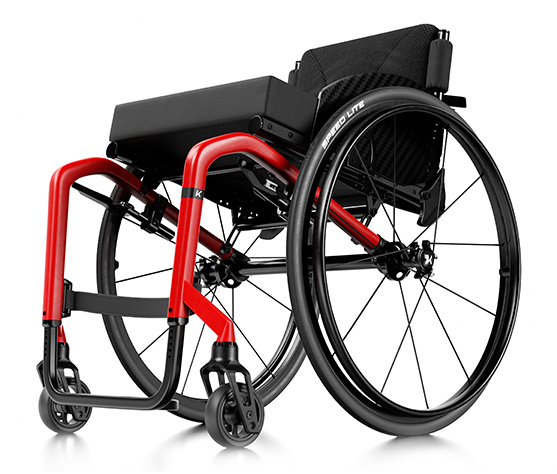

The iconic modular K-Series is the perfect product for you. The unique versatile seat module can be effortlessly modified independently from the frame and is fully adjustable to be able to fit you perfectly. Whether you require a more stable position or are more advanced, the K-Series can be adapted to suit your lifestyle.

Hydro Forming

Hydroforming is a forming process which allows the shaping of metals into lightweight, structurally stiff and strong pieces. With a high pressure process the tube is fully enclosed in a die prior to pressurization, resulting in new possibilities for complex shapes which are stronger, lighter and more rigid.

Customization Options

3 Simple steps and more than 100 design possibilities to make your Küschall wheelchair even more personal:

1. Frame colour

Select the frame among 12 possibilites.
*Additional lead time for specific colours.

Pure white
Azure Blue
Carmine Red
Space Black
Anthracite Grey
Black Glossy *
Dynamite Orange *
Flashy Yellow *
Forest Green *
Royal Blue *
Ruby Red *
Silver Grey *

2. Decal design

Give a personal touch to your Küschall by adding a decal decoration on the frame. 2 options to choose among:


3. Decal colour

Select the decal colour among 6 different possibilites:

Red Tag
Black Tag
Red Bold
Black Bold
Dark Grey Bold
Light Grey Bold
Blue Bold
Gold Bold

*Colours may vary slightly from those displayed above and are not contractual.

3D Visualizer

Configure your new Küschall to the last detail:

Watch your new Küschall take shape, configure it to the smallest details and have fun, the power is in your hands.

Would you like to know more?

Please complete the form below and we will contact you directly to answer any questions that you may have.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
* Required fields

Technical data

Seat width:

320 – 500 mm in increments of 20 mm

Seat depth:

350 – 525 mm in increments of 25 mm

Knee-to-heel lenght:

290 – 480 mm in increments of 10 mm

Backrest height:

270 – 480 mm in increments of 15 mm

Backrest angle:

74° / 78° / 82° / 86° / 90° / 94°

Seat height:

front: 450 – 520 mm rear: 390 – 490 mm in increments of 10 mm

Total width:

SW + 170 mm

Frame angle:

75° / 90° V-frame or tapered

Total length:

75°: approx. 830 - 1055 mm 90°: approx. 760 - 985 mm

Center of gravity:

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. safe slope:

0º / 3º / 6º

Total weight unloaded:

approx. 7.8 kg

Transport weight:

approx. 5.1 kg

Max. user weight:

130 kg

*All measurements and weights indicated are based on seat width 400 mm and seat depth 400 mm in the lightest and most compact configuration. Weight and measurements can change with the different configurations.
